Have you ever wondered how industrial sites safely monitor areas filled with flammable gases, vapors, or combustible dust? These environments present serious challenges for traditional surveillance systems. Standard CCTV cameras simply can’t operate safely where explosive atmospheres exist. Even a small electrical spark could lead to a catastrophic explosion, putting lives and assets in danger.
That’s why ATEX cameras are so vital. These explosion-proof systems are built specifically for hazardous environments, allowing continuous and safe monitoring without risk. By understanding ATEX zone classifications and certification requirements, you can choose the right equipment to protect your people, your operations, and your bottom line.
Do you know where the term ATEX comes from? It’s short for the French phrase “ATmosphères EXplosibles,” which refers to the European directives that regulate equipment used in explosive atmospheres. The ATEX Directive 2014/34/EU sets strict safety standards for any equipment operating in potentially explosive environments, not just in Europe, but also across the Middle East and many other regions worldwide.
When equipment carries ATEX certification, it means it has been tested to meet rigorous safety requirements designed to eliminate ignition risks that could cause explosions. In industries such as oil and gas, petrochemicals, pharmaceuticals, and mining, ATEX-certified camera systems aren’t just a nice-to-have feature. They’re both a legal obligation and a critical part of keeping operations safe and compliant.

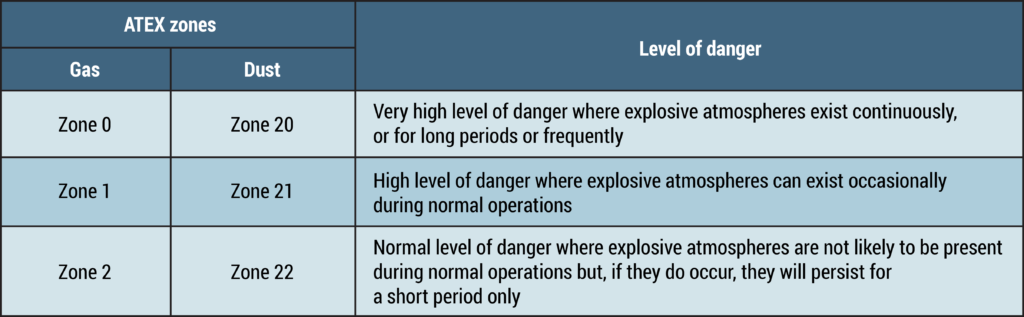

The ATEX directive classifies hazardous areas into zones based on explosion risk frequency and duration. Understanding these classifications is fundamental to selecting appropriate surveillance equipment.
Zone 0: Explosive atmosphere present continuously or for long periods. This represents the highest risk level where explosive gas mixtures exist almost constantly.
Zone 1: Explosive atmosphere likely to occur during normal operation. This zone experiences intermittent explosive conditions during routine activities.
Zone 2: Explosive atmosphere unlikely during normal operation, occurring only briefly if at all. This represents the lowest gas-related risk classification.
Zone 20: Combustible dust present continuously or for long periods.
Zone 21: Combustible dust likely during normal operation.
Zone 22: Combustible dust unlikely, only for short duration.
For camera applications, Zone 1 and Zone 2 classifications are most relevant, as Zone 0 environments rarely accommodate electronic equipment regardless of protection level.
ATEX zone 1 camera systems require the most robust protection since explosive atmospheres occur regularly during normal operations. These environments demand equipment that can contain internal ignition sources and withstand extreme conditions.
Flameproof Enclosures (Ex d): Heavy-duty housings contain potential explosions internally, preventing flame propagation to surrounding atmosphere. These robust enclosures can withstand internal detonation without breaching.
Increased Safety (Ex e): Enhanced design prevents sparks and excessive temperatures through improved insulation, secure connections, and thermal management.
Intrinsic Safety (Ex i): Electrical circuits limited to energy levels incapable of causing ignition under normal or fault conditions.
Zone 1 cameras feature reinforced construction, strict temperature classifications (T1-T6), and comprehensive certification testing. Materials resist corrosion while maintaining explosion protection integrity throughout operational life.
ATEX zone 2 camera requirements are less intensive since explosive atmospheres occur infrequently and briefly. However, these intrinsically safe camera systems still require specialized design beyond standard industrial cameras.
Non-Sparking (Ex nA): Equipment constructed to prevent sparking during normal operation through careful component selection and design.
Restricted Breathing (Ex nR): Enclosures limit gas ingress, preventing internal explosive atmosphere formation.
Energy Limited (Ex nL): Electrical energy restricted to safe levels preventing ignition.
Zone 2 cameras typically feature lighter enclosures than Zone 1 equivalents while maintaining essential explosion protection. This allows greater design flexibility and often reduces costs while meeting safety requirements for lower-risk areas.
Several critical design elements distinguish hazardous area camera systems from standard surveillance equipment.
ATEX certified camera housings provide exceptional ingress protection (IP66 or higher), preventing dust and moisture entry while maintaining explosion protection. Stainless steel or specialized alloys resist corrosion from chemicals and harsh environmental conditions.
Internal electronics generate heat that must be managed carefully. ATEX cameras incorporate thermal management ensuring surface temperatures remain below ignition thresholds for surrounding atmosphere classifications (T1 through T6 ratings).
Cable glands and conduit entries must maintain explosion protection integrity. ATEX cameras use certified cable entry devices with proper sealing, grounding, and bonding to prevent ignition pathways.
Lenses and optical interfaces require special consideration. Protective windows must maintain optical clarity while providing explosion protection, often using laminated or reinforced glass.
Modern explosion-proof cameras incorporate advanced capabilities beyond basic surveillance.
Imaging Technologies: High-resolution sensors, pan-tilt-zoom (PTZ) functionality, infrared night vision, and thermal imaging enable comprehensive monitoring regardless of lighting conditions or weather.
Durability Features: Corrosion-resistant materials, weatherproof construction, and shock-resistant designs ensure reliability in harsh industrial environments with temperature extremes, chemical exposure, and mechanical stress.
Smart Integration: Network connectivity enables integration with video management systems, SCADA platforms, and alarm systems. Motion detection, analytics, and remote access provide enhanced security and operational insights.
Different industries and facility areas require specific ATEX zone classifications based on operational risk profiles.
Refineries, offshore platforms, and processing plants utilize ATEX zone 1 cameras in main process areas where flammable hydrocarbons are regularly present. Storage areas and peripheral zones often require zone 2 protection.
Chemical plants deploy hazardous area cameras throughout production facilities where volatile compounds create explosive atmosphere risks. Both zone 1 and zone 2 cameras monitor reactors, distillation equipment, and storage facilities.
Underground mines with methane or coal dust require intrinsically safe camera systems. Surface facilities handling explosive materials utilize appropriate ATEX certified equipment based on specific risk assessments.
Facilities using flammable solvents require ATEX cameras in processing areas. Proper classification ensures surveillance capabilities without compromising safety in environments producing life-saving medications.
Selecting appropriate equipment requires careful consideration of multiple factors beyond ATEX zone classification.
Hazard Analysis: Understand specific explosive atmosphere characteristics, including gas groups, temperature classifications, and exposure frequency determining required protection levels.
Performance Requirements: Define necessary image quality, resolution, field of view, lighting conditions, and environmental challenges the system must accommodate.
Integration Needs: Consider compatibility with existing security infrastructure, network architecture, and monitoring systems ensuring seamless deployment.
Certification Verification: Confirm equipment carries proper ATEX and IECEx certifications matching your facility's zone classifications and regulatory requirements.
Proper installation is as critical as equipment selection for maintaining explosion protection integrity.
Mounting Procedures: Follow manufacturer specifications precisely. Improper mounting can compromise explosion protection or create new ignition sources.
Cable Management: Use certified conduit systems, properly rated cable glands, and appropriate sealing methods. All cable routing must maintain zone protection requirements.
Grounding and Bonding: Establish proper electrical grounding preventing static buildup and ensuring fault current paths that protect against ignition.
Documentation: Maintain comprehensive installation records including certification documents, testing results, and maintenance schedules meeting regulatory compliance requirements.
Regular inspection intervals verify continued protection integrity. Trained personnel should examine housings, cable entries, and sealing systems for damage or degradation that could compromise safety.
Technology evolution continues advancing explosion-proof camera capabilities while maintaining essential safety standards.
Artificial Intelligence: Advanced analytics enable predictive maintenance, anomaly detection, and operational insights without compromising intrinsic safety requirements.
Enhanced Connectivity: Improved network technologies support higher resolution video streaming and remote monitoring capabilities in classified areas.
Edge Processing: On-camera analytics reduce bandwidth requirements while providing real-time intelligence in environments where network infrastructure may be limited.
ATEX cameras represent essential safety equipment for facilities operating in hazardous environments. Understanding zone classifications, certification requirements, and equipment capabilities ensures effective surveillance without compromising the explosion protection that keeps personnel safe and operations running.
Whether your facility requires ATEX zone 1 camera systems for high-risk process areas or zone 2 solutions for peripheral zones, selecting properly certified equipment and following installation best practices protects lives while providing the monitoring capabilities modern industrial operations demand.
