A Guide to ATEX Zones Classification and Ex-Proof Camera Equipment

Industries across the United Kingdom, United Arab Emirates, and Saudi Arabia—especially oil & gas, chemical processing, and manufacturing—often operate in environments where explosive gases, vapours, or dust may be present.

To manage these risks, hazardous areas are classified into ATEX zones, which define the level of explosion risk and determine what type of equipment can be safely used. Choosing the correct explosion-proof (Ex-proof) camera based on these zones is essential for ensuring safety, compliance, and reliable monitoring.

Operating in explosive environments requires precise safety measures and equipment. ATEX classification zones define the levels of risk in such areas, and selecting the right explosion-proof cameras is crucial for effective monitoring and compliance. Understanding these zones and the corresponding camera requirements is key to ensuring a safe and compliant operation.

➢ Introduction to ATEX and Importance of Compliance

ATEX directives are crucial regulations designed to protect workers and equipment in environments where explosive atmospheres may be present. These directives are legally binding in the European Union and cover both equipment and work environments. Compliance with ATEX regulations is not just a legal requirement; it's essential for preventing accidents and ensuring the safety of employees and assets.

Failure to adhere to ATEX regulations can result in severe consequences, including accidents, legal penalties, and damage to your reputation. Using ATEX-certified equipment, including ATEX-approved CCTV cameras, is a fundamental step in safeguarding your operations against explosive hazards.

‍➢ Detailed Breakdown of ATEX Classification Zones

‍Zone 0 Characteristics

Definition and Characteristics: Zone 0 is an area where an explosive atmosphere consisting of a mixture of air with flammable substances in the form of gas, vapour, or mist is present continuously or for long periods. The constant presence of these hazardous conditions requires the highest level of safety measures.

Industries Commonly Associated with Zone 0:

• Oil and Gas Extraction: Inside tanks or pipes in drilling operations and refineries.
• Chemical Manufacturing: Areas involving volatile chemicals, such as processing and storage.
• Pharmaceutical Production: Processes using flammable solvents in confined spaces.
• Food and Beverage Production: Specifically in alcohol and spirits production where vapours accumulate.

Surveillance Needs: OSHA mandates hazardous industries to invest in ATEX zone 0 cameras. These cameras must be intrinsically safe to operate in explosive atmospheres, ensuring continuous monitoring without risking ignition of hazardous gases.

Zone 1 Characteristics

Definition and Characteristics: Zone 1 is an area where an explosive atmosphere is an occasional occurrence in every day operations. This means that while the atmosphere might not be continuously explosive, it can become so periodically during operations or maintenance.

Industries Commonly Associated with Zone 1:

• Petrochemical Plants: Areas around pumps, compressors, and storage tanks.
• Paint and Coating Operations: Where solvent vapours are present intermittently.
• Wastewater Treatment: Zones with potential gas build-up, like digesters and sludge processing areas.
• Pharmaceutical Manufacturing: Processing zones using volatile organic solvents.

Surveillance Needs: Explosion-proof ATEX zone 1 cameras must be capable of safely operating where explosive gases might occasionally appear. These cameras help in monitoring operations, ensuring safety, and complying with regulations.

Zone 2 Characteristics

Definition and Characteristics: Zone 2 is an area where an explosive atmosphere is not likely to occur in normal operations but, if it does occur, it would persist for a short period. These areas are generally safer than Zones 0 and 1, but still require surveillance.

Industries Commonly Associated with Zone 2:

• Gas Stations: Areas where fuel vapours might be present occasionally.
• Agricultural Facilities: Grain handling and storage areas where dust explosions can occur.
• Food Processing Plants: Areas with intermittent exposure to flammable cleaning agents or production residues.
• Automotive Manufacturing: Paint booths and storage areas for solvents and chemicals.

Surveillance Needs: While the risk is lower in this zone, explosion-proof cameras are still necessary to detect any accidental release of explosive substances. Our ATEX zone 2 cameras ensure that potential hazards are promptly identified.

‍➢ Selecting the Right Explosion-Proof Camera

When it comes to industrial environments where explosive gases, dust, or other hazardous materials are present, selecting the right explosion-proof camera is critical to maintaining safety and ensuring reliable surveillance. Each environment presents unique challenges, and the camera must comply with specific ATEX standards. This guide will walk you through the key factors to consider and compare different types of cameras based on their suitability for various ATEX zones.

Factors to Consider

1. Environment Conditions

• Temperature Range: Explosion-proof cameras must be capable of operating in extreme temperatures, both high and low. Harsh environments, such as oil rigs or chemical plants, often see wide temperature fluctuations. Cameras designed for these environments must maintain performance despite these conditions.
• Humidity and Potential Contaminants: Environments like food processing plants or chemical storage facilities may present high humidity levels or airborne contaminants that can affect camera performance. Choosing an explosion-proof camera with appropriate ingress protection (IP rating) for water and dust resistance is essential to ensure longevity.
• Explosive Atmospheres: In environments where explosive gases or dust are prevalent, the camera needs to be certified for the appropriate ATEX zone. Zones 0, 1, and 2 deal with gases, while Zones 20, 21, and 22 address dust, each requiring equipment that meets specific criteria to prevent ignition of the surrounding atmosphere.

2. Specific Safety Requirements

• ATEX Classification Zones: Cameras need to be compliant with ATEX certification based on the zone they will be installed in:

1. Zone 0 and Zone 20: These are the most hazardous areas where explosive atmospheres are continuously present. ATEX-approved CCTV cameras for these zones need to offer the highest level of protection.
2. Zone 1 and Zone 21: These areas have a high risk, though not continuous. Cameras in these zones should still meet strict ATEX standards but with slightly less stringent requirements than Zone 0/20.
3. Zone 2 and Zone 22: In these zones, the risk is intermittent, so explosion-proof cameras should still be used but may offer a broader range of models due to slightly reduced safety standards.

3. Camera Specifications

• Resolution and Image Quality: Explosion-proof cameras in hazardous areas need to offer high-quality images to ensure clear monitoring, even in low-light conditions. Look for options with high resolution, low-light sensitivity, and infrared (IR) capabilities for optimal performance.
• Material and Construction: The material of the camera housing must be highly resistant to corrosive environments. Stainless steel is often used for ATEX-approved CCTV cameras, providing durability and protection against harsh chemicals or extreme weather conditions.
• Network Connectivity: For large facilities, IP-based explosion-proof cameras are often preferred as they allow remote monitoring and integration into existing networked security systems. Wireless options may also be advantageous in hard-to-reach areas.

‍

‍

➢ Comparative Analysis of Camera Types

There are several types of explosion-proof cameras, each suited for different monitoring needs. The following is a comparative analysis based on their use in various ATEX zones:

1. PTZ (Pan-Tilt-Zoom) Cameras

• Advantages: PTZ cameras provide wide-area coverage through remote-controlled panning, tilting, and zooming. They allow operators to adjust the focus in real-time, making them highly versatile for large industrial sites.
• Suitability for ATEX Zones: PTZ cameras are ideal for Zones 1 and 21, where the risk of an explosive atmosphere is high, but coverage of a large area is essential. However, for Zone 0 or 20, additional considerations regarding the camera’s moving parts and safety are necessary, potentially limiting their use.
• Use Case: PTZ cameras are commonly used in oil refineries and chemical plants where real-time control over the camera is required to track movement or zoom in on specific areas of concern.

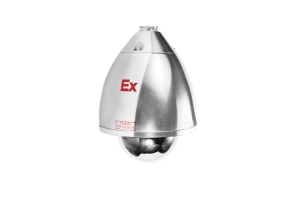

2. Dome Cameras

• Advantages: Dome cameras offer discreet surveillance, with their dome-shaped housing making it difficult to discern which direction the camera is facing. They are typically compact and vandal-resistant, suitable for indoor or outdoor use.
• Suitability for ATEX Zones: Explosion-proof dome cameras work well in Zones 2 and 22, where the risk of an explosive atmosphere is present but less frequent. They are often used for indoor environments or areas with lower exposure to explosive gases or dust.
• Use Case: Dome cameras are frequently used in food processing plants, warehouses, or industrial zones where general surveillance is needed without overt camera presence.

3. Fixed Cameras

• Advantages: Fixed cameras offer a single point of view, which can be advantageous for focused surveillance on high-risk areas. Their robust design makes them highly durable, especially in extreme conditions.
• Suitability for ATEX Zones: Fixed explosion-proof cameras are highly reliable and suitable for all ATEX zones, including Zones 0 and 20. Since they have no moving parts, the risk of sparking or mechanical failure in explosive atmospheres is minimised.
• Use Case: These cameras are best suited for areas where constant monitoring of a single area is necessary, such as gas pipelines, chemical storage facilities, or production lines with consistent risk of hazardous exposure.

To ensure the highest safety standards and reliable performance, always opt for ATEX-approved CCTV cameras that meet the required zone classifications for your environment.

‍Read More : SharpEagle's Explosion-Proof Cameras for Hazardous Areas

Regional Relevance (UK, UAE, Saudi Arabia)

🇬🇧 United Kingdom

The UK follows ATEX and DSEAR regulations for hazardous areas.

Ex-proof cameras help:

• Ensure legal compliance
• Improve offshore and industrial safety
• Monitor confined hazardous environments
• Reduce operational risks

In the UK, strict compliance + offshore operations drive adoption.

🇦🇪 United Arab Emirates

The UAE has large-scale oil, gas, and industrial infrastructure.

ATEX-based systems help:

• Manage high-temperature environments
• Ensure continuous monitoring in critical facilities
• Improve safety in large industrial zones
• Reduce risks in energy sector operations

In the UAE, environment + scale increase demand.

🇸🇦 Saudi Arabia

Saudi Arabia operates some of the world’s largest oil & gas facilities.

ATEX compliance helps:

• Improve safety in high-risk zones
• Ensure global standard compliance
• Support large-scale monitoring
• Reduce downtime and accidents

In Saudi Arabia, hazard level + industrial expansion drive adoption.

‍➢  Advanced Features and Technological Innovations

In the field of explosion-proof cameras, advanced features and technological innovations are essential for ensuring safety in hazardous environments. These innovations improve not only the functionality of the cameras but also the overall safety protocols of industrial sites. Below are some of the key advancements shaping this field.

• Sensor Technology: Advancements in sensor technology significantly enhance the detection of hazardous conditions, such as gas leaks or temperature changes, by providing high sensitivity and accuracy. These sensors improve the reliability of explosion-proof cameras, ensuring they function effectively in volatile environments and offer early warnings of potential dangers.
• Integration with Safety Systems: Integrating explosion-proof cameras with broader safety systems, such as alarms and control rooms, allows for real-time monitoring and quicker responses to emergencies. This seamless connection ensures a coordinated approach to safety, improving the overall security and operational efficiency of high-risk areas.
• ‍AI and Automation: The use of AI in explosion-proof cameras enables predictive maintenance and automated alerts. By analysing patterns and identifying potential issues before they escalate, AI enhances response times and optimises safety measures, ensuring continuous, proactive protection in hazardous environments.

➢ Benefits of ATEX-Certified Cameras

ATEX-certified cameras are designed to meet the highest safety standards for hazardous environments, making them indispensable for industries like oil, gas, and chemicals. These cameras go beyond standard surveillance, providing essential protection in explosive atmospheres. Here are some key advantages of ATEX-certified ex-proof cameras:

1. Enhanced Safety: Explosion-proof design is the cornerstone of ATEX-certified cameras, preventing sparks or overheating that could ignite flammable gases or dust. High-resolution imaging ensures clear visuals, while its infrared capabilities allow for effective monitoring even in low visibility conditions. This ensures continuous surveillance without compromising safety, detecting potential hazards in real-time before they escalate.
2. Cost Savings: ATEX cameras contribute to long-term cost savings by reducing the likelihood of costly accidents and operational disruptions. Improved safety measures lead to fewer workplace incidents, which, in turn, lower insurance premiums and regulatory fines. With real-time surveillance, companies can catch potential risks early, avoiding costly downtime and repairs, resulting in a more efficient and safer operation.
3. Longevity and Durability: ATEX cameras are built to withstand the harshest conditions, from extreme temperatures to corrosive environments. Stainless steel housings and corrosion-resistant coatings protect the cameras from environmental damage, extending their operational lifespan. This rugged construction minimises the need for frequent replacements or repairs, ensuring the cameras provide consistent performance over time, offering a solid return on investment.

These benefits make ATEX-certified cameras a vital part of a safety-focused surveillance system, offering not only protection but also economic and operational advantages.

➢ Decision-Making Guide for Customers

When investing in explosion-proof cameras, making the right choice requires understanding your unique requirements and compliance needs. This guide provides a clear checklist to help customers navigate these factors, ensuring they select a camera that offers both safety and functionality in hazardous environments.

Checklist for Buyers

1. ATEX Classification: Confirm the camera is certified for your specific ATEX zone (Zone 1, 2, 21, or 22).
2. Temperature Range: Ensure the camera operates within the temperature conditions of your site.
3. Material and Durability: Check for robust, corrosion-resistant materials like stainless steel.
4. Resolution and Lens Type: Consider the necessary video resolution and optical zoom for clear surveillance.
5. IP Rating: Look for a high IP rating (e.g., IP66/67) for dust and water protection.
6. Mounting and Installation: Verify that the camera is compatible with existing mounting systems or if custom installations are required.

‍

‍

Conclusion

Understanding ATEX zones and selecting the appropriate ATEX approved CCTV cameras are crucial for ensuring safety and compliance in hazardous environments. By investing in ATEX-certified equipment, you protect your operations and comply with regulatory standards, ensuring enhanced safety and security for both your team and assets. SharpEagle offers a comprehensive selection of ATEX-certified cameras designed to meet the specific requirements of various hazardous environments. Our experts can provide tailored recommendations to ensure you select the best equipment for your needs. Visit our website to explore our range of solutions or contact us directly for a detailed consultation. We are committed to helping you enhance your safety measures and achieve full compliance with ATEX regulations. ‍

‍

FAQs about ATEX Zones and the Associated Ex-Proof Surveillance Solutions

What makes explosion-proof cameras different from conventional cameras?

Explosion-proof cameras are specialised devices designed to operate safely in environments with potential explosive hazards. They are engineered to contain any internal explosions, preventing the ignition of surrounding flammable gases or dust. These cameras feature robust construction to withstand extreme conditions, making them essential for industries like oil and gas, chemicals, and pharmaceuticals where explosive atmospheres may be present.

Why is ATEX certification important?

ATEX certification is critical as it verifies that equipment meets stringent European safety standards for use in explosive atmospheres. This certification process involves rigorous testing and evaluation to ensure that products can function safely without becoming an ignition source. Compliance with ATEX standards not only protects personnel and property but also helps companies avoid legal repercussions associated with non-compliance.

Can I install any chosen explosion-proof cameras in any hazardous location?

The model of explosion-proof camera you choose needs to be compatible with the ATEX zone of your industry. We provide ex-proof solutions for zone 1, 2, 21, and 22. However, not all the cameras in the ex-proof range are suited for every hazardous location. Installation must be aligned with specific ATEX zones, which categorise areas based on the likelihood of explosive atmospheres. It is vital to select a camera that is certified for the designated zone to ensure maximum safety and compliance.

What is the necessary maintenance for the ex-proof cameras?

Regular maintenance is essential for explosion-proof cameras to ensure their ongoing functionality and safety. This includes routine inspections of the camera housing and connections, checking for wear and tear, and ensuring that seals are intact to prevent any potential breaches that could lead to hazardous situations.

By understanding these key aspects, users can make informed decisions when selecting explosion-proof cameras that meet both operational needs and safety regulations.

What are ATEX zones?

ATEX zones are classifications used to identify hazardous areas where explosive atmospheres may occur. These zones are defined based on how often and how long flammable gases, vapours, or dust are present. The classification helps determine the level of safety measures and the type of equipment required to operate safely in those environments.

What is the difference between Zone 0, Zone 1, and Zone 2?

Zone 0 is the most hazardous area where explosive atmospheres are present continuously or for long durations. Zone 1 represents areas where such conditions occur occasionally during normal operations, while Zone 2 refers to areas where explosive atmospheres are rare and exist only for short periods. The level of protection required decreases from Zone 0 to Zone 2.

What type of equipment is used in ATEX zones?

Equipment used in ATEX zones must be specially designed and certified to prevent ignition. This includes explosion-proof cameras, lighting systems, sensors, and electrical devices. The type of equipment depends on the zone classification, with higher-risk zones requiring more advanced and protective designs.

Can regular CCTV cameras be used in ATEX zones?

No, regular CCTV cameras are not safe for use in ATEX zones. They can produce sparks or heat that may ignite flammable substances. Only certified explosion-proof cameras designed for hazardous environments should be used to ensure safety and compliance.

How do I choose the right explosion-proof camera for my zone?

To choose the right camera, you need to first identify the ATEX zone of your environment. Then, select equipment with the appropriate certification and protection level (such as Category 1G, 2G, or 3G). It’s also important to consider environmental conditions, monitoring needs, and compliance requirements.

What are ATEX equipment categories?

ATEX equipment categories define the level of protection provided by equipment used in hazardous areas. Category 1 offers the highest level of safety and is suitable for Zone 0, Category 2 is for Zone 1, and Category 3 is for Zone 2. These categories ensure that equipment matches the risk level of the environment.

Are ATEX zones applicable worldwide?

While ATEX is a European standard, similar classifications are used globally under IECEx standards. Many countries, including the UAE and Saudi Arabia, follow or align with these standards, making ATEX-compliant equipment widely accepted in international industrial environments.

‍
