What are SharpEagle’s Explosion proof camera series?

Dave Smith
Safety Consultant
June 3, 2022
What are SharpEagle’s Explosion proof camera series?
Summary
SharpEagle offers explosion proof cameras made for dangerous places with flammable gases or dust. These cameras meet strict safety rules called ATEX certification. They are strong, made with stainless steel, and can work in hot or harsh conditions. They have clear video, can see in the dark with infrared, and can be installed in different ways. These cameras help keep workers safe in industries like oil, gas, and chemicals by watching over the area carefully.
Table of Content

Heading

Heading

Heading

SharpEagle has made available various types of Explosion Proof cameras. All these are available with advanced technologies. Explosion-proof cameras can widely be used in a hazardous atmosphere. So, let us check the types of Explosion Proof cameras presented by SharpEagle and relevant features.

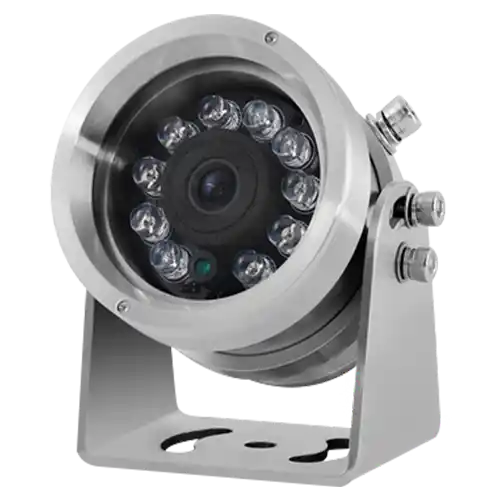

‍Explosion Proof Mini IR Camera

‍Among the top Explosion-proof CCTV systems, SharpEagle’s Explosion-proof Mini IR camera is considered the most effective one. This camera comes with ATEX certification and these are the smallest ones.
‍

➢ Primary Design

• It comes with the housing mode of 304 / 316L stainless steel

‍• These cameras are certified to use in Zone 1, Zone 2, and any other type of hazardous conditions, including gas and dust.

‍• The range of temperature where this camera works the best is -30°C to +70°C

‍• It is enabled with IP68 waterproofing technology.

‍➢ Image quality

• Available with 1080p and 5 million 1/2.5” progressive CMOS

‍• It can take day and night various color images with crystal clear quality

‍• Available with 3D noise reduction.

‍➢ Other key features

• Easy to install and operate

‍• The camera comes with a wide range of mounting options

‍• Supports Wi-Fi and 3G function

‍• It supports ONVIF protocol

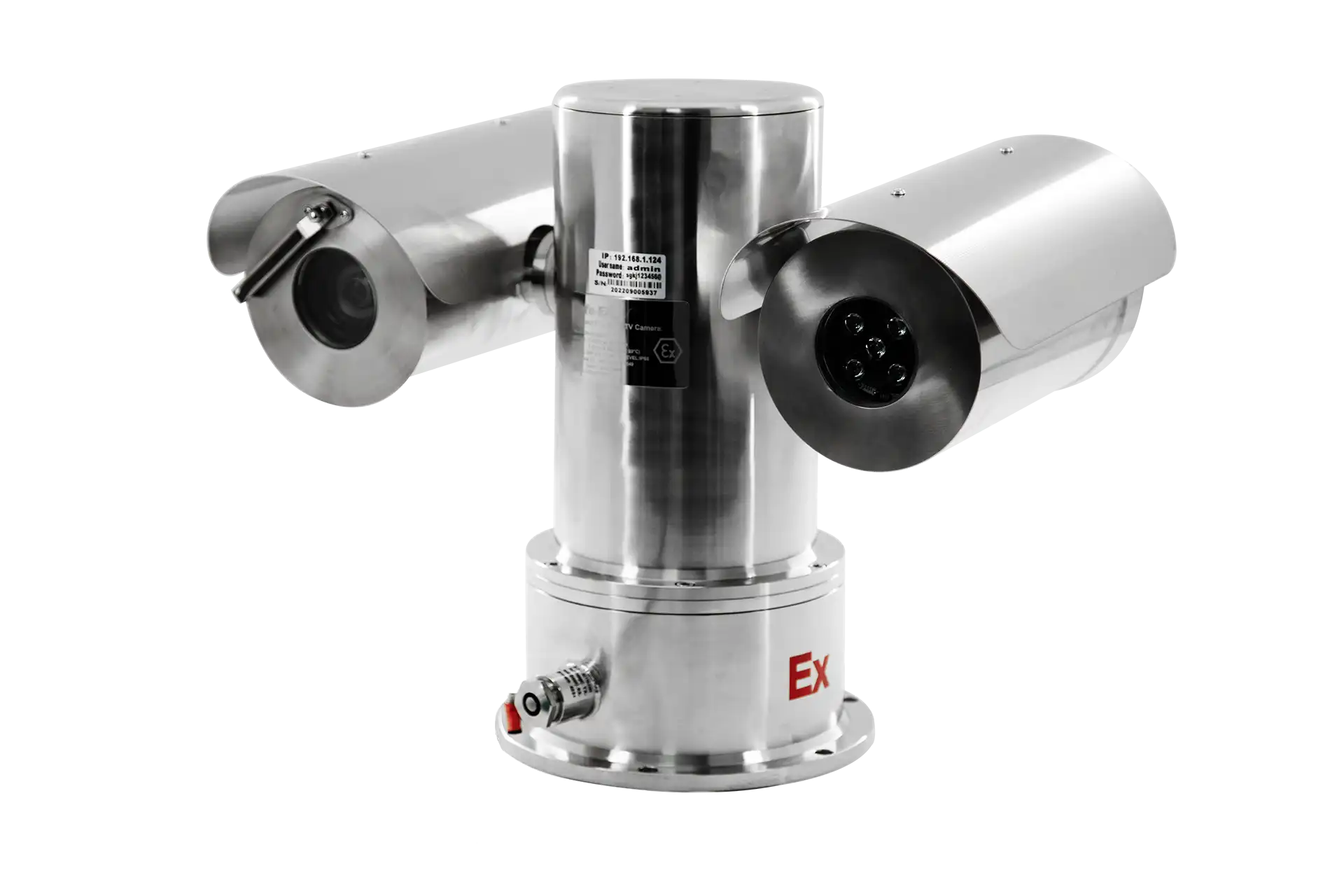

‍Explosion Proof PTZ Camera

‍The next reliable Ex Proof surveillance system offered by SharpEagle is Explosion Proof PTZ Cameras. These cameras are famous for their vigorous design and in-built protective measures. Explosion Proof PTZ Cameras are in demand for excellence in top-ranked surveillance.

➢ Primary design

•  The body of this camera is made with 304 / 316L stainless steel

‍•  These are also permitted for use in Zone 1, Zone 2, and other hazardous environments.

‍•  IP68 Weatherproof rating has made it more advanced.

‍➢ Image quality

• PTZ cameras come with a 960p feature

‍• It is facilitated with 5 million 1/3” progressive scan CMOS

‍• The image resolution varies between 25-30Fps

‍• The Signal to Noise Ratio is less than 52dB that is remarkable

‍• It comes with a 12x digital zooming facility.

‍➢ Other key feature

• It needs a power supply of AC 220V, DC 12V.

‍• It is easy to install and operate

‍• It meets the criteria for onshore and offshore video surveillance and heavy industrial milieu.

‍• It works smoothly with 360-degree horizontal rotation

‍Explosion Proof Zoom IR Camera

‍This Atex-certified camera is made for video surveillance in hazardous and challenging environments. Robust design and advanced safety features have upgraded these surveillance cameras.

➢ Primary Design

• 304/316L Stainless Steel has made it robust

‍• These are preferred for use in Zone 1 and Zone 2 areas and also the places with inflammable gas and dust.

‍• These cameras can work at a temperature range between -30°C to +70°C

‍• IP68 Weatherproof feature has made this camera more powerful

‍➢ Image Quality

• It is available with 1/2.8” Progressive Scan CMOS

‍• It comes with 30X optical zoom and 16x digital zoom.

‍• The minimum illumination available with Color: 0.01Lux @ (F1.6,AGC ON / B/W: 0.001Lux @ (F1.6,AGC ON)

‍➢ Other key features

• Users find it easy to install

‍• The power supply required for this camera is - DC12V or AC110-240V

‍• The camera comes with an infrared lamp that turns on once proper light is absent.

‍• The focal length is available between - 4.5mm to 135mm

‍• It is made suitable to work in the areas like offshore, onshore, heavy industrial areas, or any dusty workplace.

Read more: What is explosion proof camera? How do Ex proof cameras work

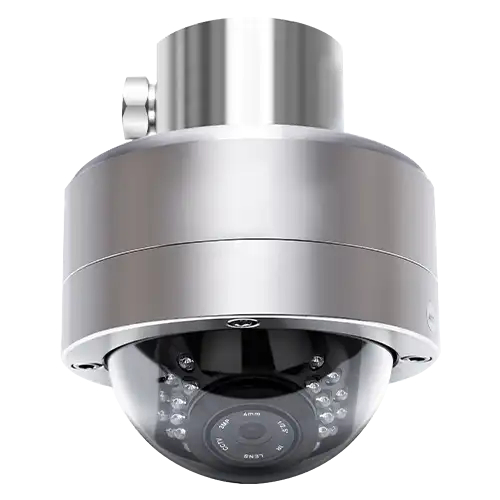

‍Explosion-proof Fixed Type Dome Camera

‍Explosion Proof Fixed Type Dome cameras are technologically advanced with superior image quality and flexible surveillance solutions. Here you will find a perfect blend of essential features between traditional explosion-proof and smart dome cameras.

➢ Primary Designs

• The camera has been designed with 304/316L Stainless Steel. It also comes with an Electro-polished surface.

‍• Users will find it excellent due to its lightweight, immense flexibility, and attractive presence.

‍• Like other explosion-proof cameras, it is also made suitable to work within the areas like Zone 1, Zone 2, and hazardous areas.

‍• It works within the range -30°C to +70°C

‍➢ Image quality

• It is available with a maximum resolution of 1080P.

‍• The CMOS sensor is 1/2.5“ with a 5-megapixel feature

‍• It is available with automatic IR CUT conversion day and night,

‍• It captures excellent pictures with rich, bright colors

‍➢ Other Key Features

• It is easy to install

‍• The power supply requires - DC12V.

‍• It captures high-quality images at a visible, infrared distance between 5m-15m

‍• Focal Length lies between -4.6mm~165mm.• The video compression feature is - H.265/H.264/MJPEG

‍• These cameras are an idea to use in every hazardous and dusty environment. These cameras are considered best for video monitoring in offshore and onshore fields.

‍Explosion Proof PTZ Dome Camera

‍SharpEagle is being considered as one of the top explosion-proof camera manufacturers and the company has offered an exclusive Explosion Proof PTZ Dome Camera.

➢ Primary Design

• Made with 304/316L Stainless Steel and also facilitated with Electro-polished surface

‍• This lightweight camera is suitable to use in Zone 1, Zone 2, and other dusty areas

‍• These can work at a temperature between -30°C to +70°C

‍• It is available with an IP68 weather-proof feature.

‍➢ Image Quality

• It comes with 5 megapixels 1/3” CMOS 3516A+ SONY 327 and Maximum Resolution is - 1920*1080@30fps

‍• Signal to Noise Ratio is less than 50dB

‍➢ Other Key Features

• Easy to install and operate

‍• It needs a power supply of - DC12V

‍• The focal length lies between - 4.6mm~165mm

‍• Video compression is - H.265/H.264/MJPEG

‍SharpEagle brings various types of Ex Proof cameras. These come with advanced features. You can use these Explosion-proof cameras in hazardous areas. You may also read:
